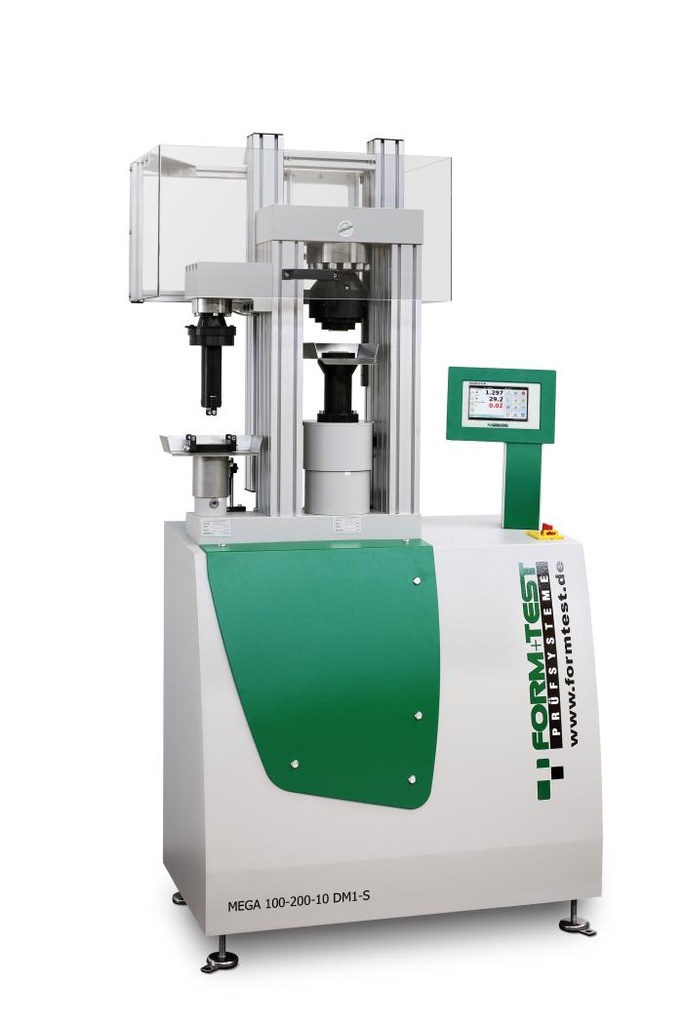

Compression and Bending Testing Machine, MEGA 100-300-10 DM1-S

● accuracy according to DIN EN ISO 7500-1, class 1

● for compression and flexure strength tests according to EN 196, EN 1015, EN 13892-2 with options also acc. EN 12504-1 and EN 993-5

● automatic load increase by digital controller DIGIMAXX® C40 with servo valve in closed loop system with nominal-actual value comparison

Technical Data – Compression Test

● test load max.: 300 kN

● working pressure max.: 192.55 bar

● piston stroke: 50 mm

● upper pressure plate: 40 mm

● lower pressure plate: 40 mm

● hardness of pressure plates:

58-62 HRC > 600 HV

● test area height: 50 mm

● inner width of test frame: 226 mm

● measuring range: 2.00 ... 300 kN

● display area: 0 ... 300 kN

Technical Data – Bending Test

● test load max.: 10 kN

● working pressure max.: 79,57 bar

● piston stroke: 50 mm

● test area height: 50 mm

● length of bending roller: 50 mm

● bending roller Ø: 10 mm

● bending roller distance: 100 mm

● measuring range: 0.2 ... 10 kN

● display area: 0 ... 10 kN

● force measurement via electronic load cell insensitive to shear forces

● voltage: 3x 400 Volt, 50 Hz, 3.0 kW

● weight: appr. 450 kg

Technical Data – Digital Controller

● capacitive and robust 7” touch display

● PID-controller with DSP processor

● modular system with expansion options up to 8 control and measuring channels 18 Bit

● measuring- and control cycle 2 kHz

● transmission of measured value up to1 kHz

● freely programmable test sequences

● real-time display of the measuring channels as well as of the specimen strengths and test speed

● authorization model with different role and access authorizations (tester, laboratory, manager, service technician, administrator)

● automatic and manually zero-adjustment

● adjustable break detection

● adjustable piston back-travel time

● specimen storage for test results

● 6 digital inputs galvanically isolated

● 9 potential-free relay outputs

● USB port for data export

● Ethernet connection for communication with PC software

Options:

● larger (higher) test area

● larger pressure plates

dimensions 110 x 110 x 30 mm dimensions Ø 210 x 40 mm

        dimensions 210 x 210 x 40 mm

A set of pressure plates with floating axle for the bending test area

B bending table with adjustable bending rollers 30 ... 250 mm

C compression device DV 600 AZ

D E-modulus measuring equipment ● test software PROTEUSMT

Available with following test loads:

● for compression test:

100 kN, 200 kN, 300 kN

● for bending test:

10 kN, 20 kN, 30 kN
