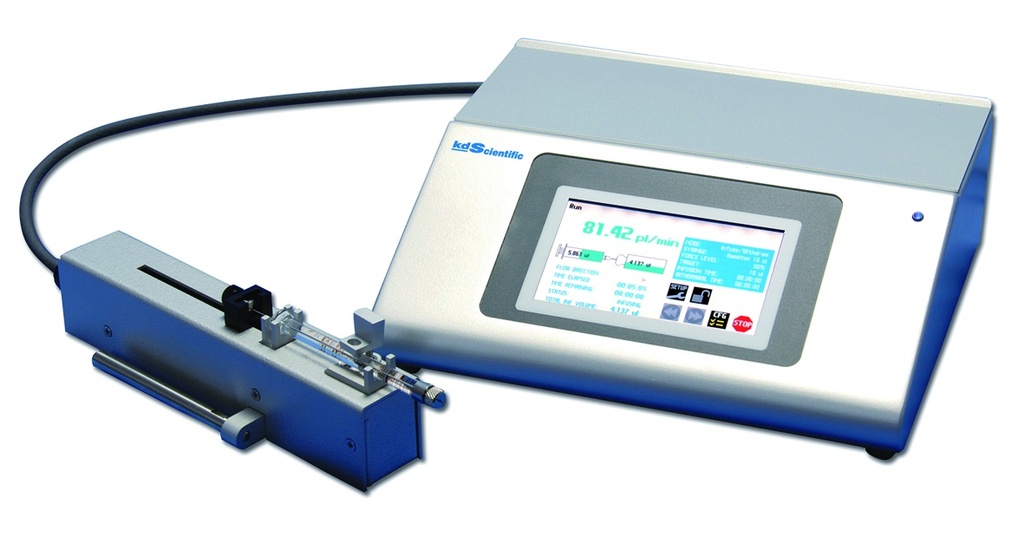

Syringe pump Legato® 130
The Legato® 130 Nanoliter pump is ideal for stereotaxic and micro manipulator devices. The Legato® 130 is an infuse/withdraw single syringe pump. It works with micro syringes from 0.5 to 1000 µl. Any type of syringe can be used including glass and plastic. It has a remote pump head which can be placed close to the experiment to eliminate dead volume with long tubing. The remote pump head is ideal for use with a micromanipulator, stereotaxic and other clamping devices. Syringe size and flow rates are easily displayed as well as the volume delivered and the elapsed time. A wide dynamic flow range from picoliters per minute to milliliters per minute can be programmed into the pump.
-Remote pump head
-Large colour touchscreen display
-2 programs with 50 steps each
-Icon driven software
-USB, RS-232and RS485 interface
-Precise and smooth flow
Specifications
Flow rate: 3.66 pl/min to 3.82 ml/min
(depending on syringe size)
Accuracy: ±0.5 %
Syringe size: 0.5 to 1000 µl
Dimensions: 9 x 19 x 7,6 mm
Weight: 2 kg
Power supply: 100-240 VAC, 50/60 Hz

Type Legato® 130
