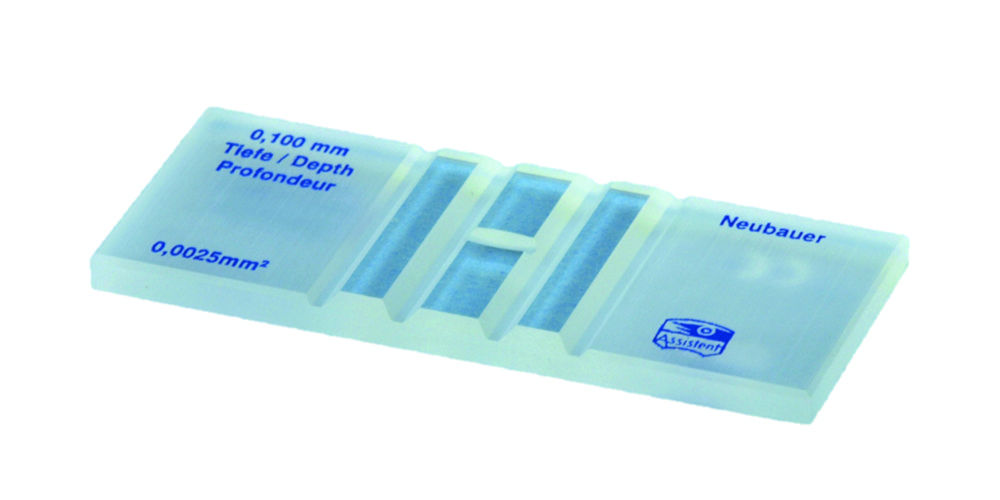

Counting chamber, Neubauer

With double ruling. Without snap-on clips.

Cell depth 0.1mm.

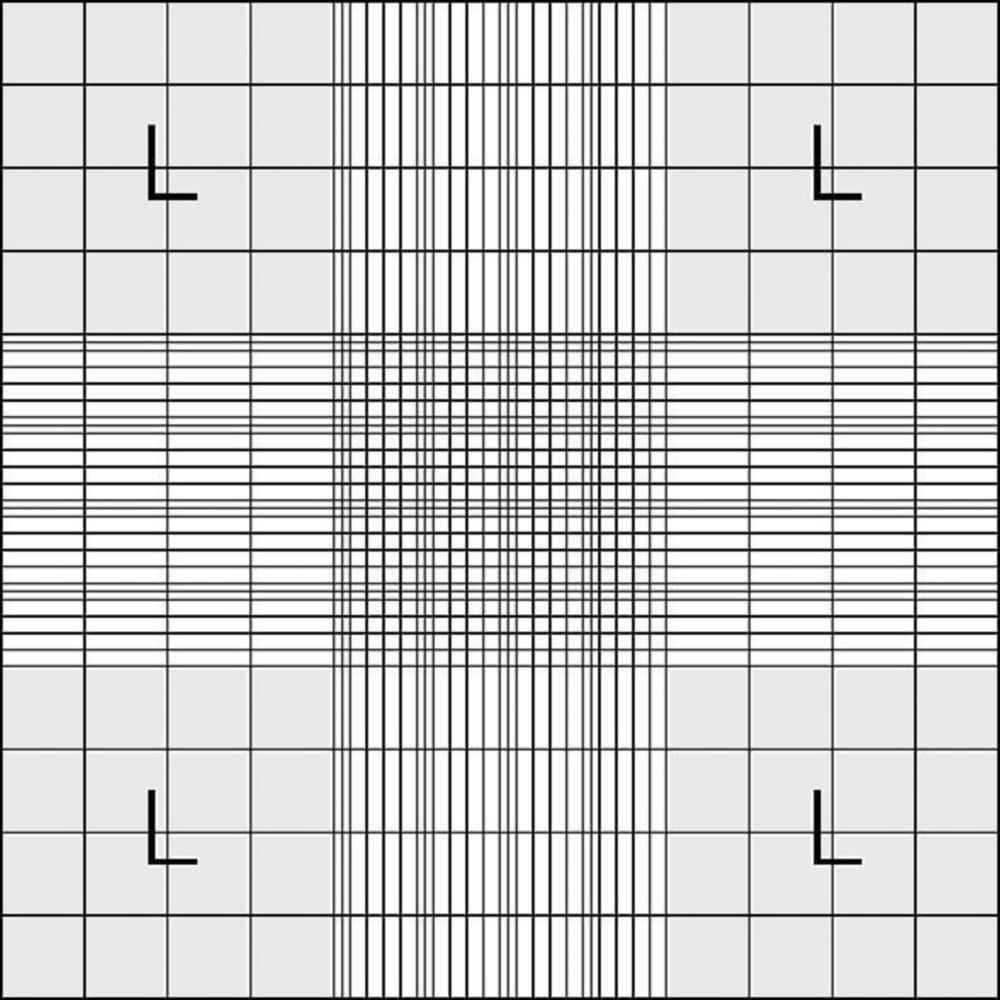

The ruling shows 9 large squares of 1 mm2 each. The four large squares in the corners marked "L" for counting leucocytes are each subdivided into 16 squares with 0.25 mm sides. The large square in the center is subdivided into 16 group squares of 0.2 mm sides. Each group square consists of 16 mini squares with 0.05 mm sides, each having an area of 0.0025 mm2. Contrary to the more advanced Improved Neubauer counting chambers, the counting area of each group square is limited by the outer one of the triple boundary lines.
CE-marked according to IVD-Directive 98/79 EC.
